BMW 155 GTR

Saxon Motorsport offer for sale their BMW 155 GTR

This car was purpose built for Endurance Racing and is the fourth 1 series that Saxon Motorsport have built and is by far the most developed.

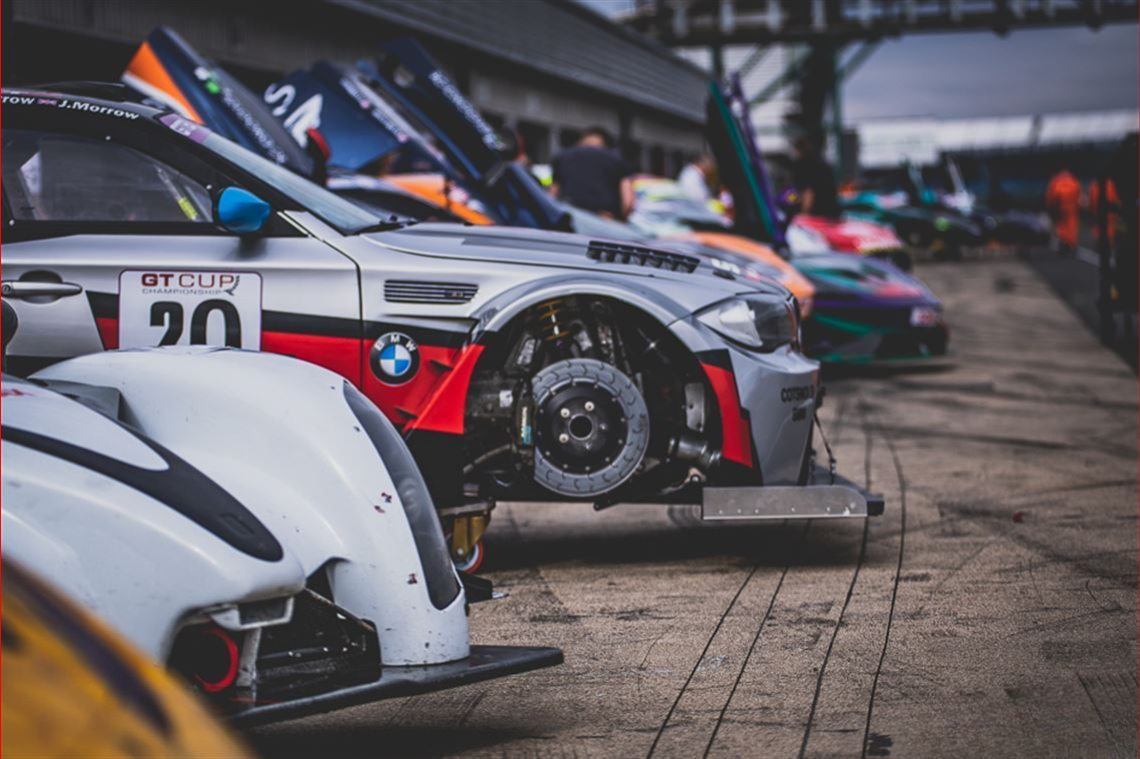

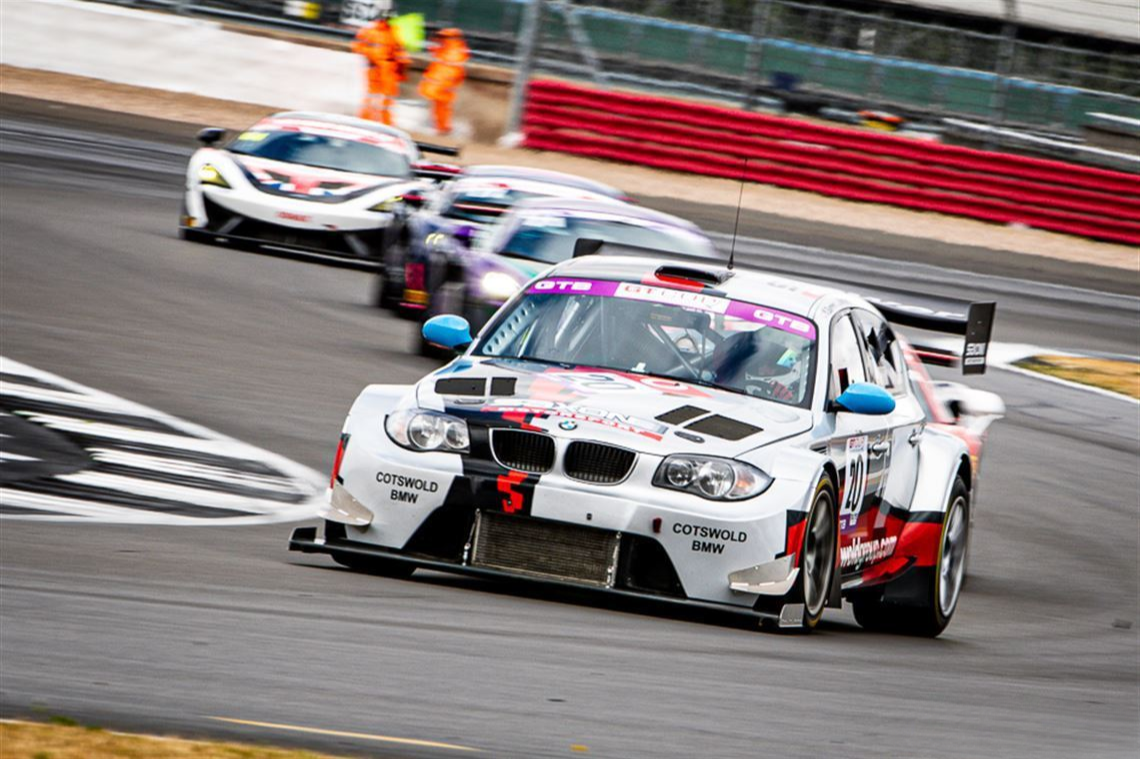

The car has had numerous wins in the GT Cup Championship. This highly reliable and fully sorted car is available with a spare engine and spares package for £95,000

Chassis

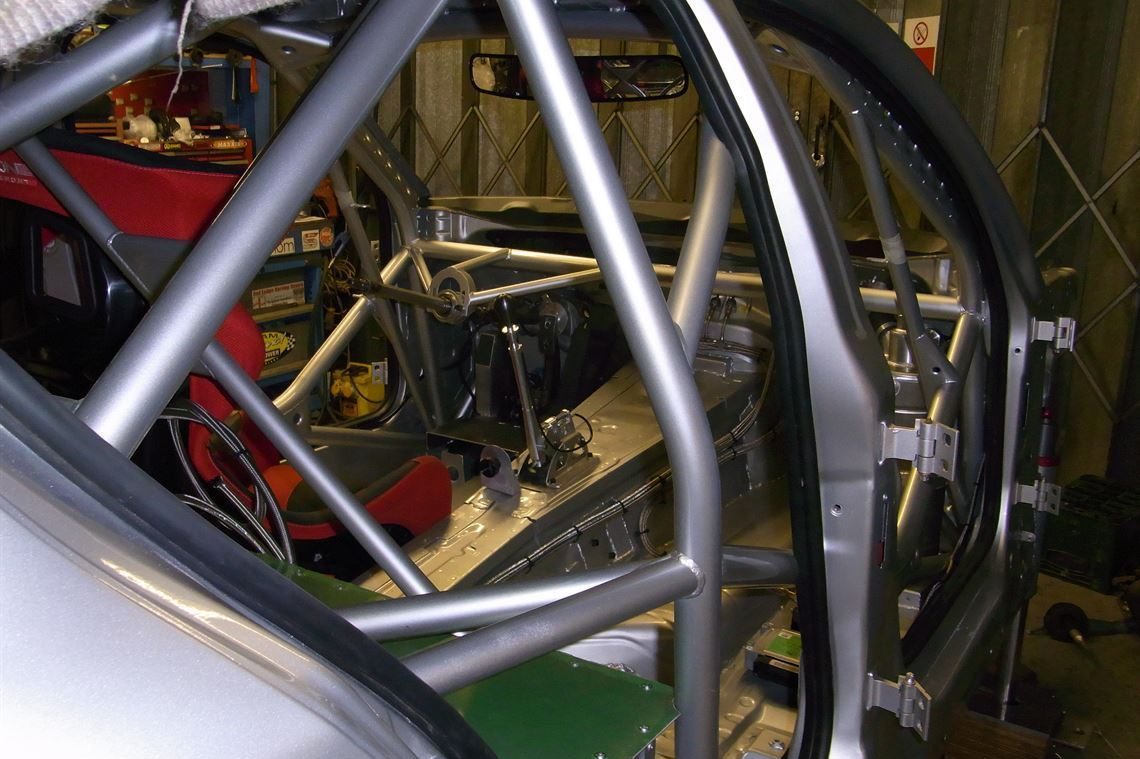

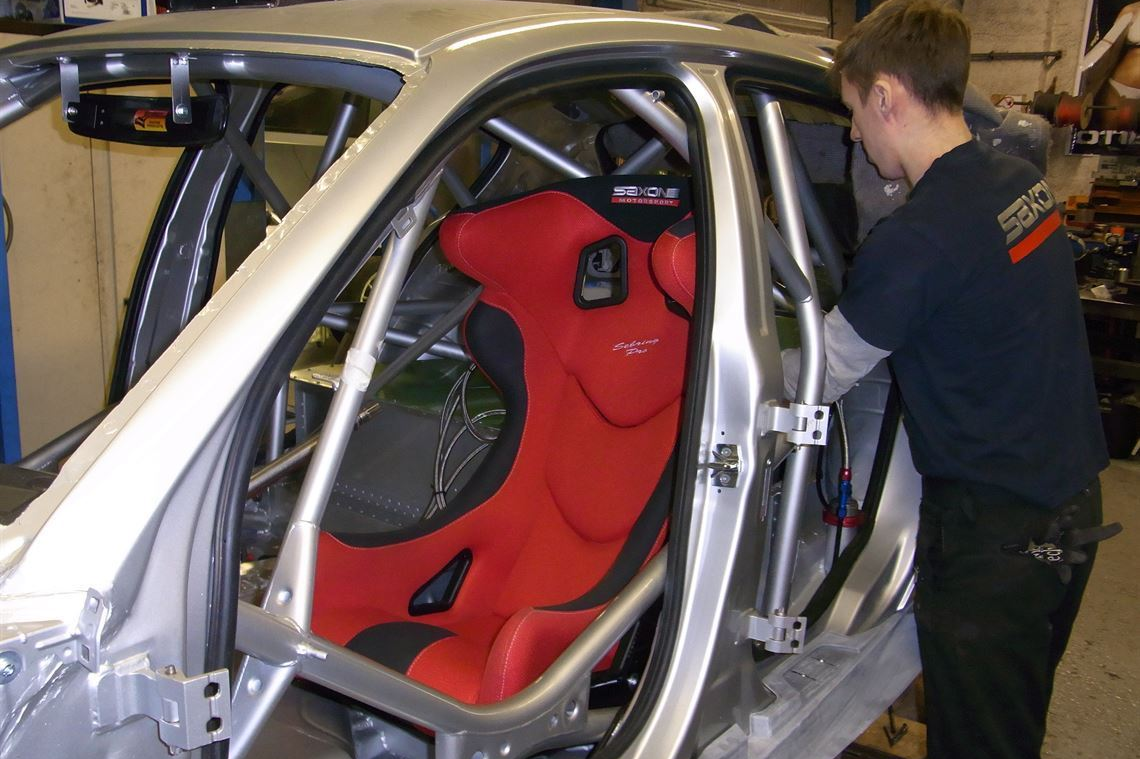

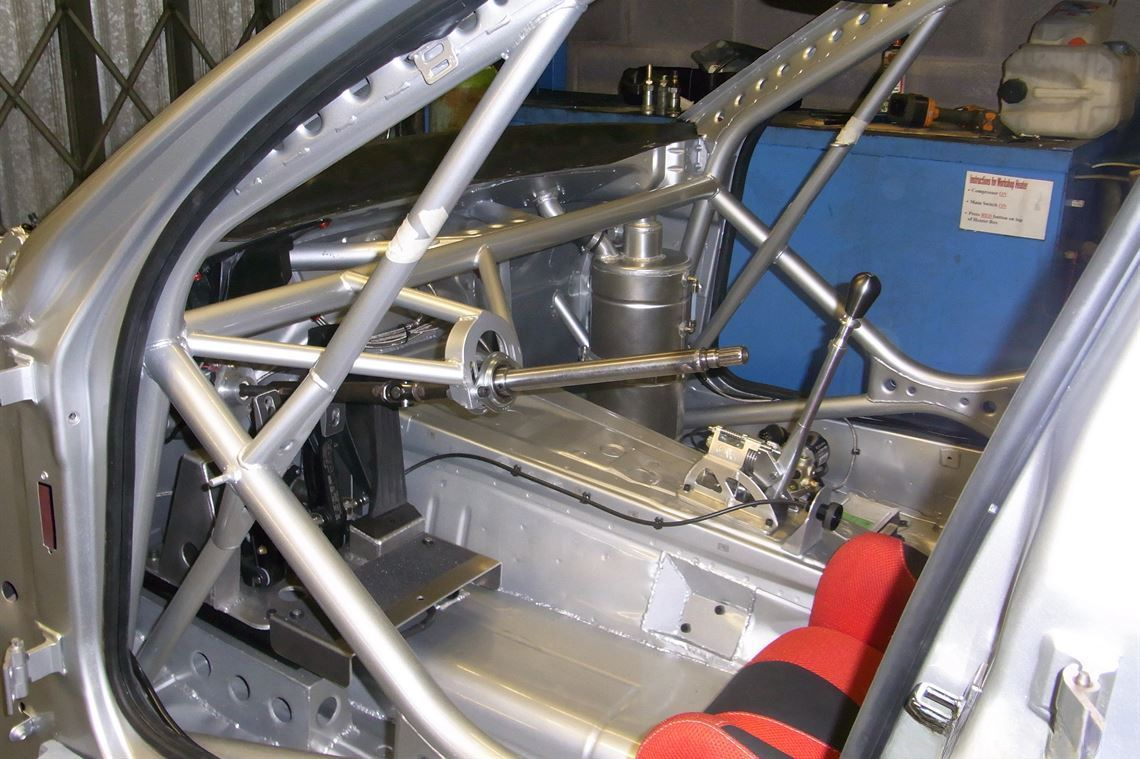

• Fully strengthened and lightened Body Shell with FIA Certified welded cage
• Flossman Carbon Aero Kit
• Carbon Fibre Doors and Bonnet
• FIA Fuel Cell
• FIA Plumbed in Electric Fire Extinguisher
• Custom stainless exhaust manifolds and system

Suspension and brakes

• Fabricated front subframe and Uprights with fully rose jointed Suspension and Optimised Geometry

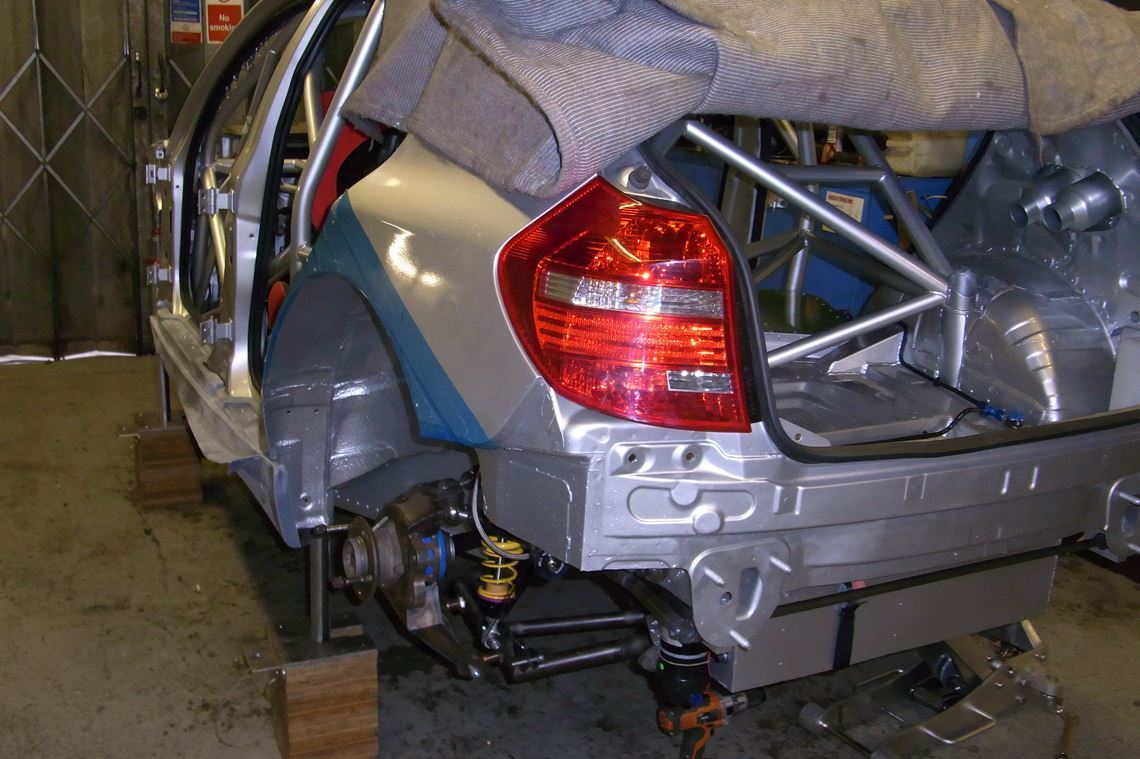

• BMW Motorsport Rear Subframe, Suspension and Uprights
• KW 3 way adjustable Dampers all Round
• Adjustable anti Roll Bars Front and Rear
• Ride Height adjustability Front and Rear Independent of Spring Preload
• BMW Hydraulic Power Steering with Oil Cooling
• Floor Mount Pedal Box with Adjustable Bias Bar
• AP Racing Front and Rear brakes with Quick Change Pads for Endurance Racing
• Bosch Motorsport ABS with Driver Adjustable Modes for Different Track Conditions

Engine

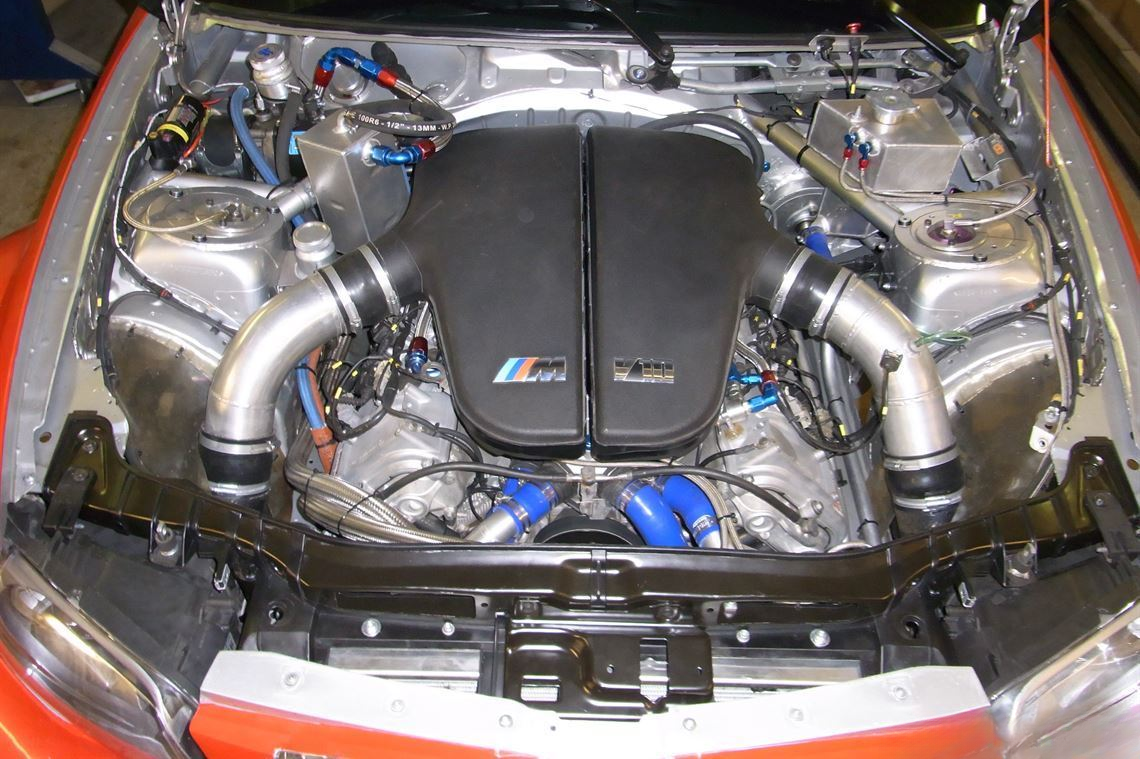

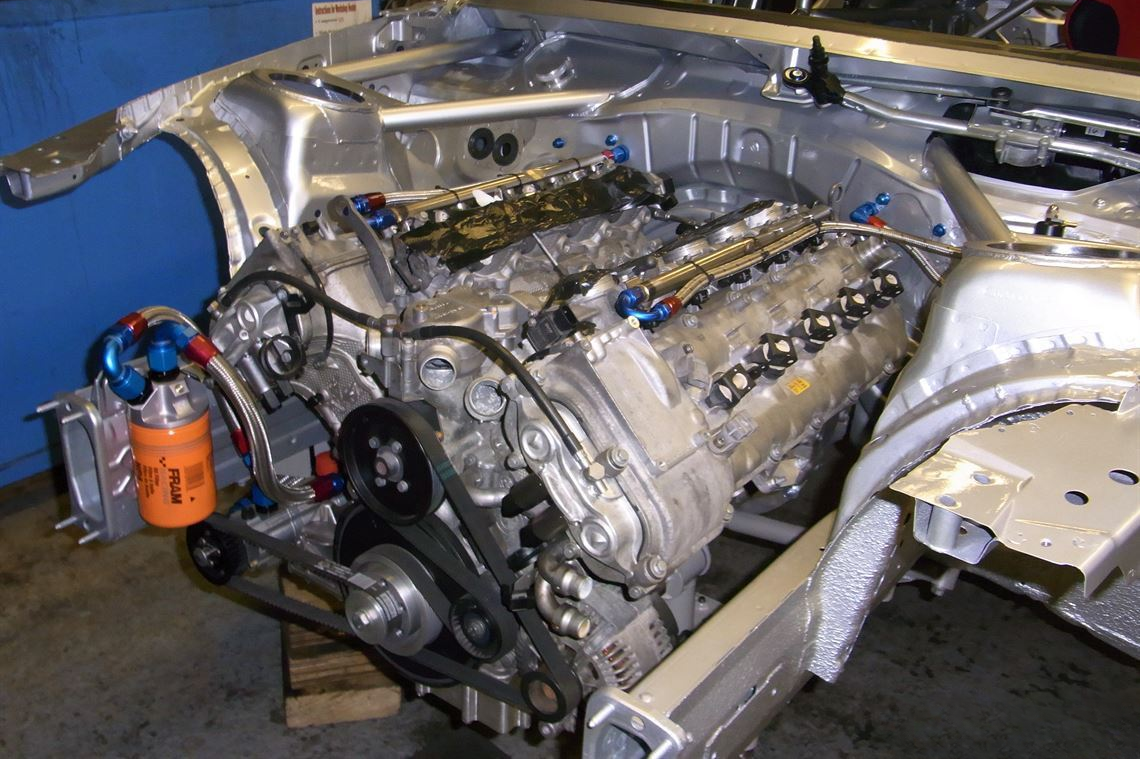

• BMW S85 V10 BMW Engine. Up to 680 BHP
• Stroked Steel Crankshaft and Steel Rods with Forged pistons giving a capacity of 5.6l
• Modified VANOS System giving a wide range of torque and power.

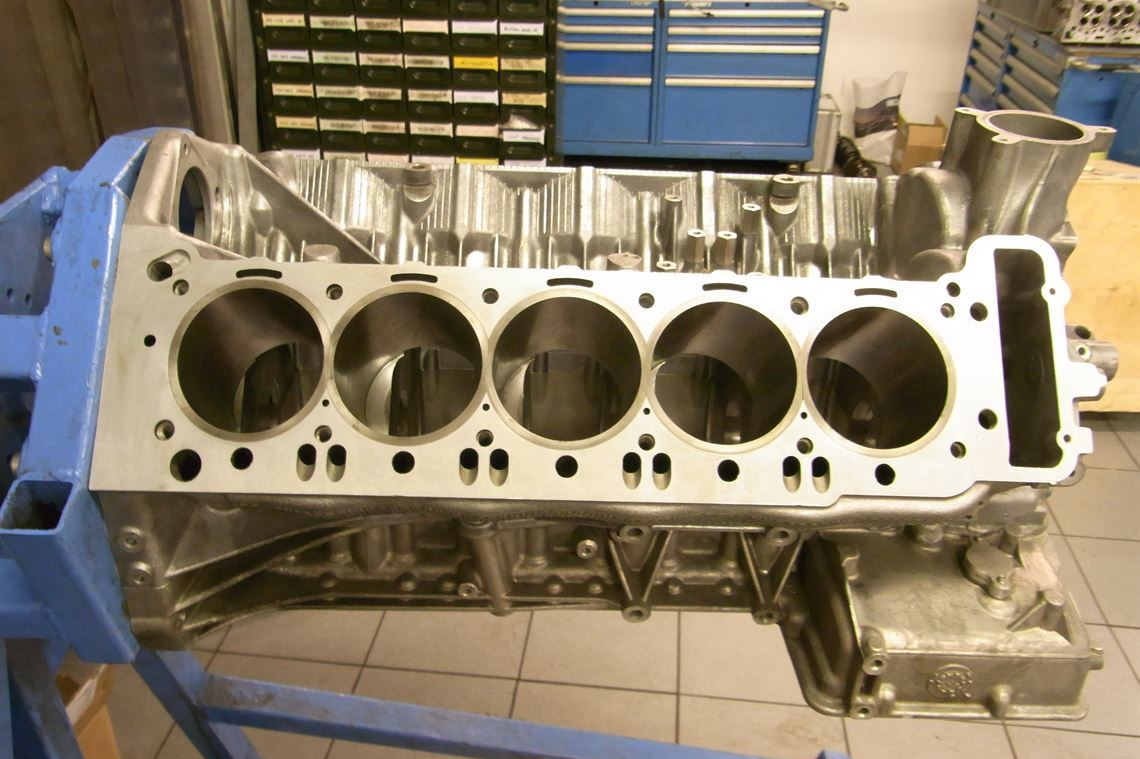

• Nikasil Coated Block by Capricorn Engineering
• Dry Sump System by Dailey Engineering and Saxon Motorsport.
• Carbon Cold Air Intakes with Filters
• Pectel MQ12 ECU with-Drive by Wire Closed Loop Dual Bank Lambda
• Variable Cam Timing Control
• Full Paddle Shift Gearbox Control
• Driver Adjustable Traction Control
• Driver Adjustable Engine Modes for Wet Etc.
• Pit speed Limiter
• Engine Protection for, Coolant Temperature and Low Oil Pressure
• Full Data Logging with Removable Data Card for Pit Stops.
• Pectel BTCC Spec Omega Dash

Transmission

• Brand New Hollinger Engineering Sequential Gearbox with Factory Fitted Paddle Shift Valve and Actuator System. Zero Miles. Bullet proof gearbox proven in Australian V8 Supercars.
• Shiftec Paddleshift Compressor and Accumulator.
• Custom Billet Bellhousing with Hydraulic Release Bearing
• Twin Plate Motorsport Clutch with Lightweight Billet Flywheel
• Closed Loop Pneumatic Paddle Shift through Pectel M12 ECU
• Drexler Plate LSD with Optimised Ramp Angles Oil Cooling

SPARES PACKAGE

• Complete engine with steel flywheel, clutch and all ancillaries ready to install.
• Front subframe
• Pair of front arms
• Pair of front uprights with adapters for dampers
• Set of dampers
• 2 X rear wheel bearings
• Set of wheel speed sensors
• Most engine sensors
• Vanos pump
• Power steering pump
• Diff pump
• Gearbox cooler
• Engine rad
• Power steering cooler
• Complete diff
• Radiator front ducting panel
• 2 X drive shafts
• Spare ecu
• Spare dry sump tank
• Carbon Engine intake air boxes
• Numerous front and rear springs
• Dump churns for fast fuelling + car fittings
• Narrow wet rims : 10 off
• Inter rims : 12 front, 3 rear
• Wide slick rims : 5 front, 7 rear
• Simpson 5 into 1 manifolds
• Lift pumps for fuel tank
• High pressure fuel pumps
• Carbon front bumper
• 2 X Carbon front wings
• Carbon Splitter
• 2 X Flossman Carbon rear wings
• Set of front lights
• Set of rear lights
• Front alloy cross member
• Carbon rear bumper
• 2 X Carbon rear arches
• 2 X Carbon cills
• Boot lid
• Carbon bonnet
• Front heated screen
• Antiroll bars front:
• Car skates
• 2 X air lances for air jacks
• 2 X Pit wall TV’s
• Wheel cleaning bath
• 2 X New front discs on bells
• 2 X New rear discs on bell with new pads
• Pad push back tools
• Fast wheel nut holders and nuts
• Starter motor
• Alternator
• 2 X Drive by wire motors
• Throttle pedal
• S85 Cam timing tool
• FIA Fire extinguisher
• 2 X Helmet fans
• Door number lights
• Nurburgring GPS beacon
• Air compressor
• Air compressor tank
• 2 X Front anti roll bars
